Silva 5-6400/360 MILITARY COMPASS MS

$129.50

A full-sized military baseplate compass with graduations in mils, magnifying glass, declination adjustment, clinometer and luminous markings.

15 in stock

Continue shopping Maybe you want to continue shopping?

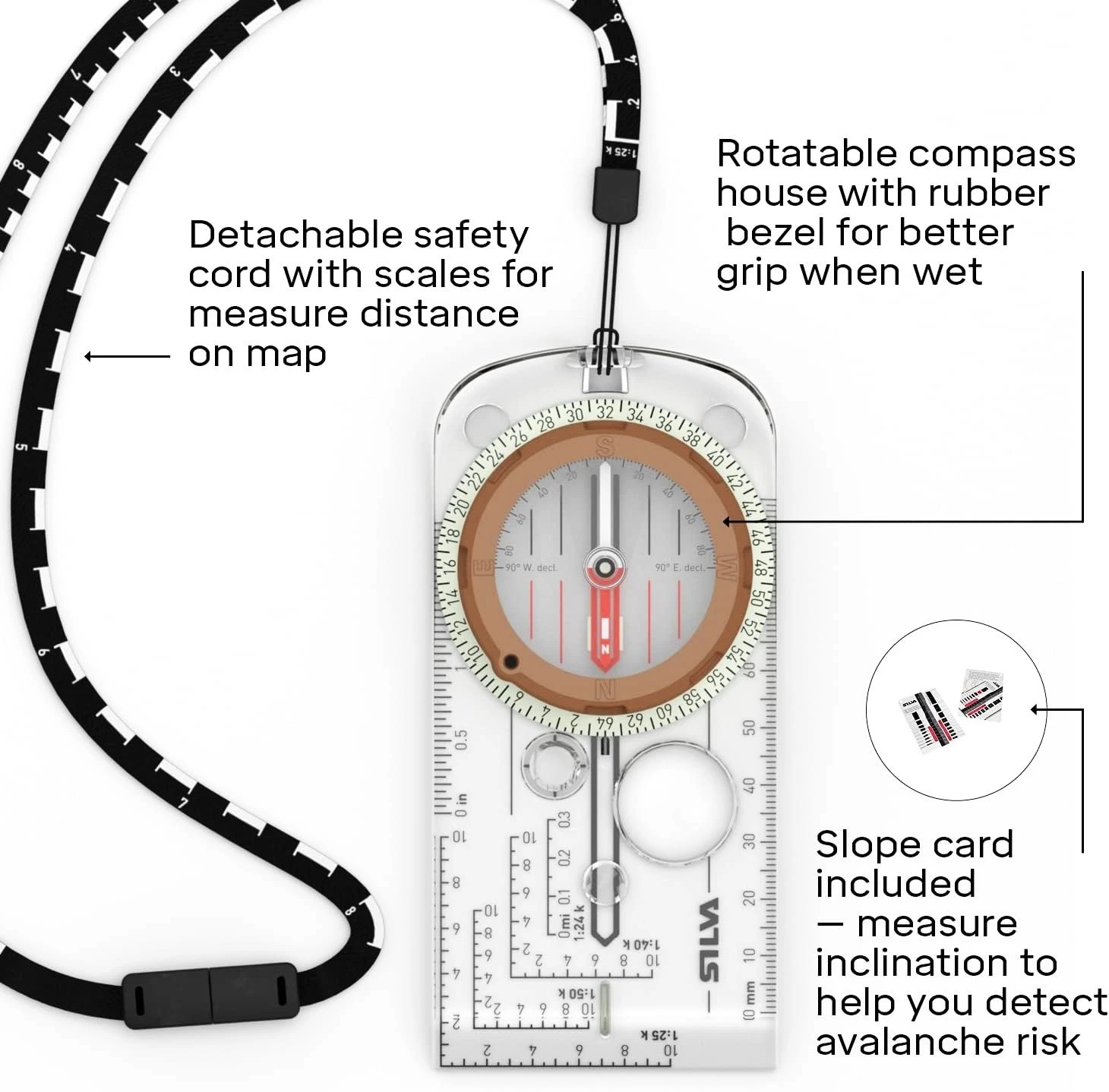

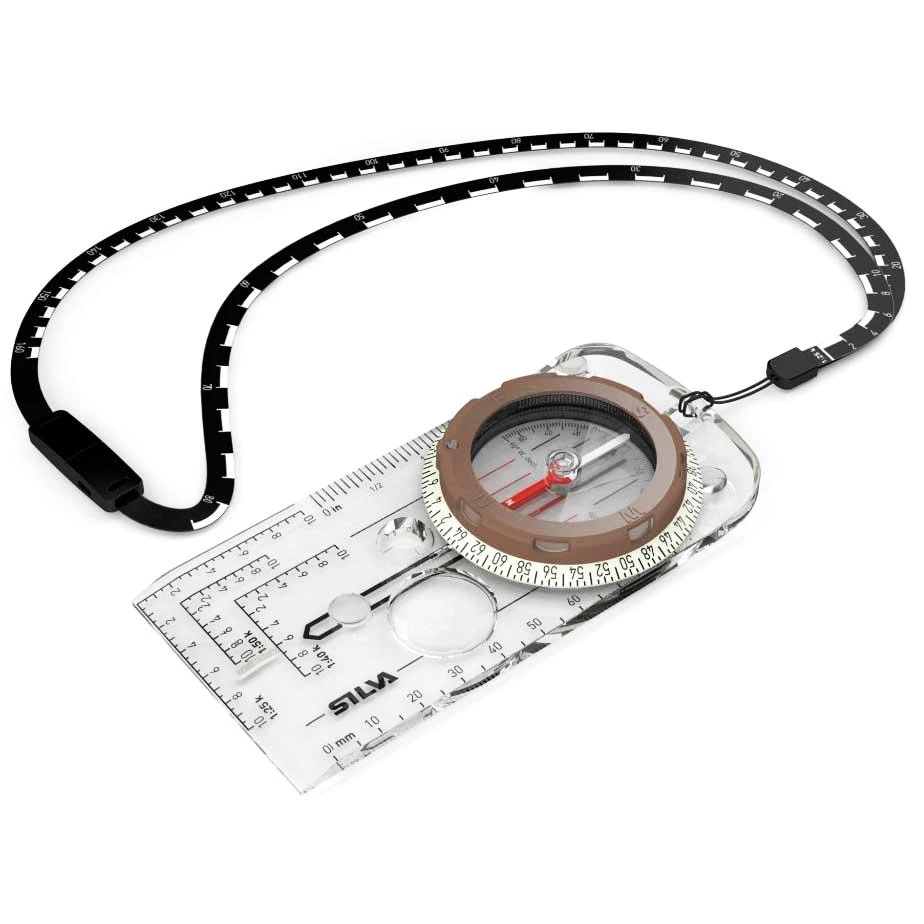

The SILVA 5-6400/360 is a full-sized military baseplate compass for experienced navigators and used by NATO Forces around the world.

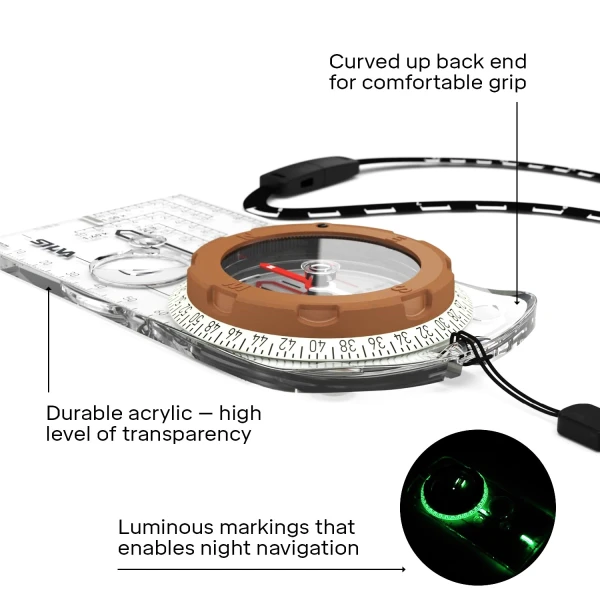

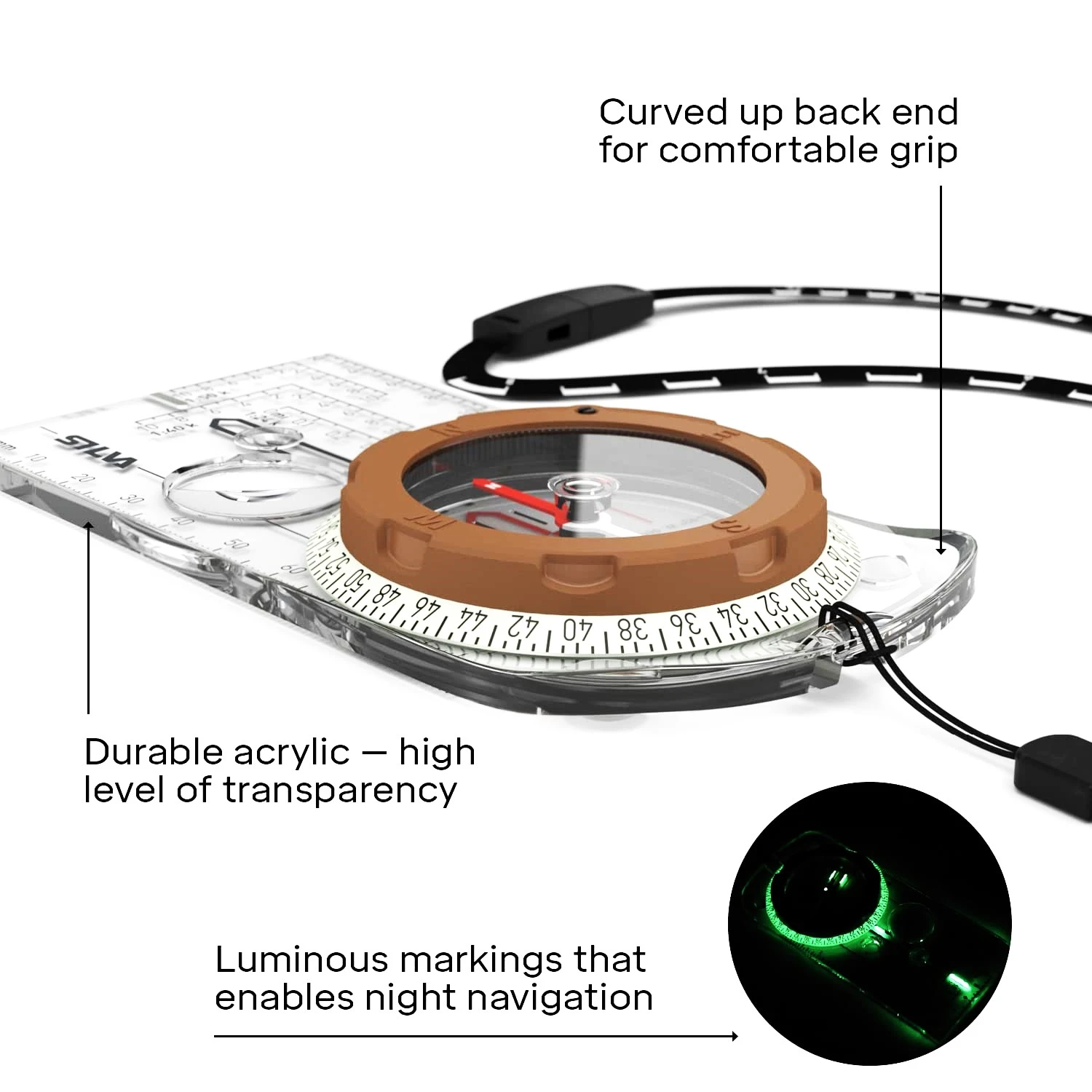

Additional features include measuring scales for positioning (GPS), graduations in mils and degrees (6400/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. This compass has a luminous graduation ring and markings for night use, giving up to 4 hours of light once activated by daylight/flashlight. The scale lanyard and slope card makes it easier to quickly calculate distances.

Features:

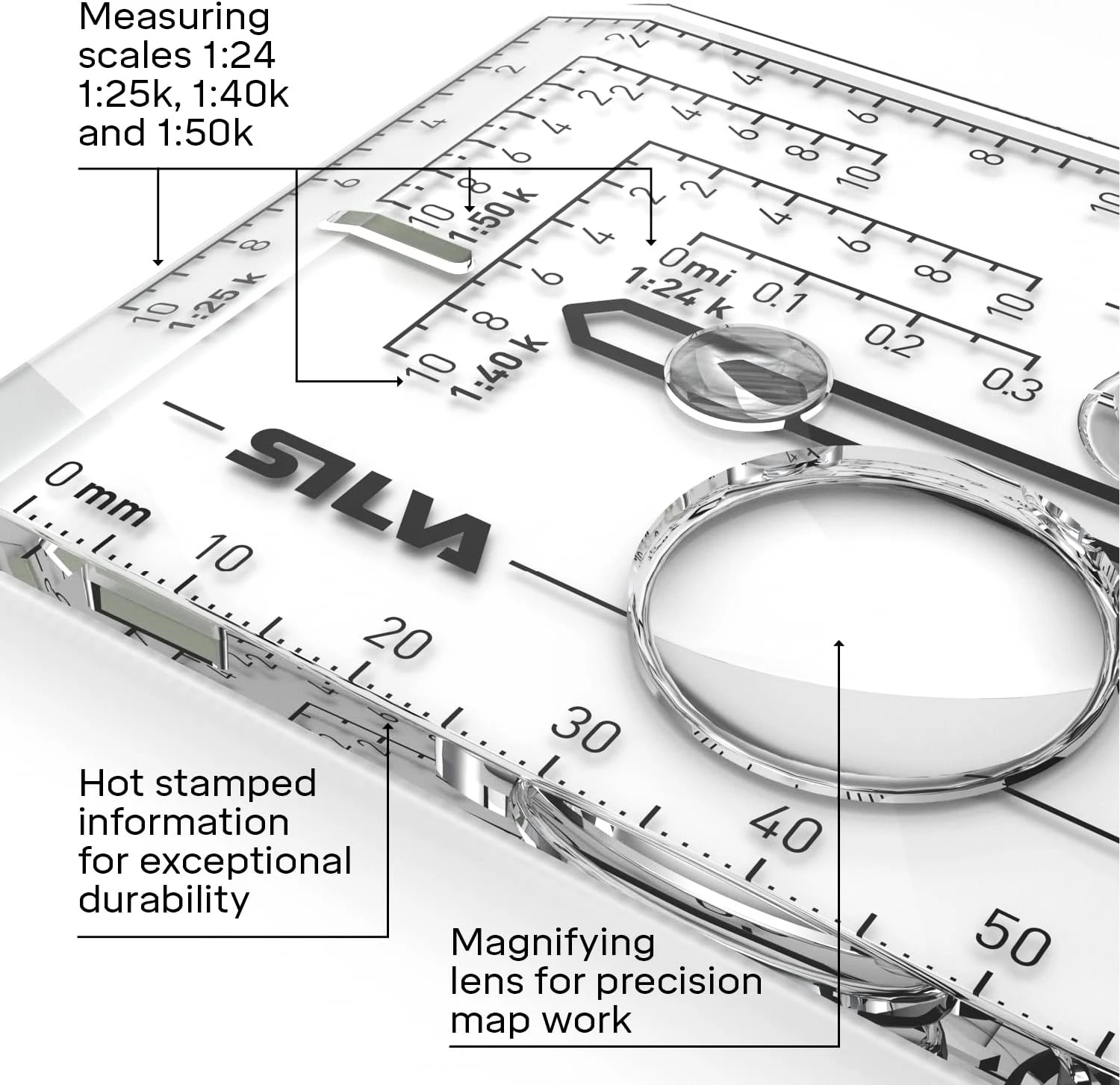

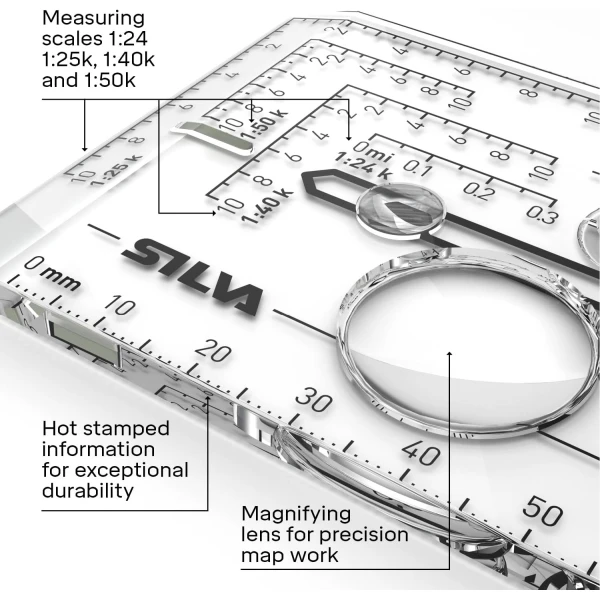

  • measuring scales for positioning (GPS)
  • graduated in mils and degrees (6400/360)
  • magnifying glass

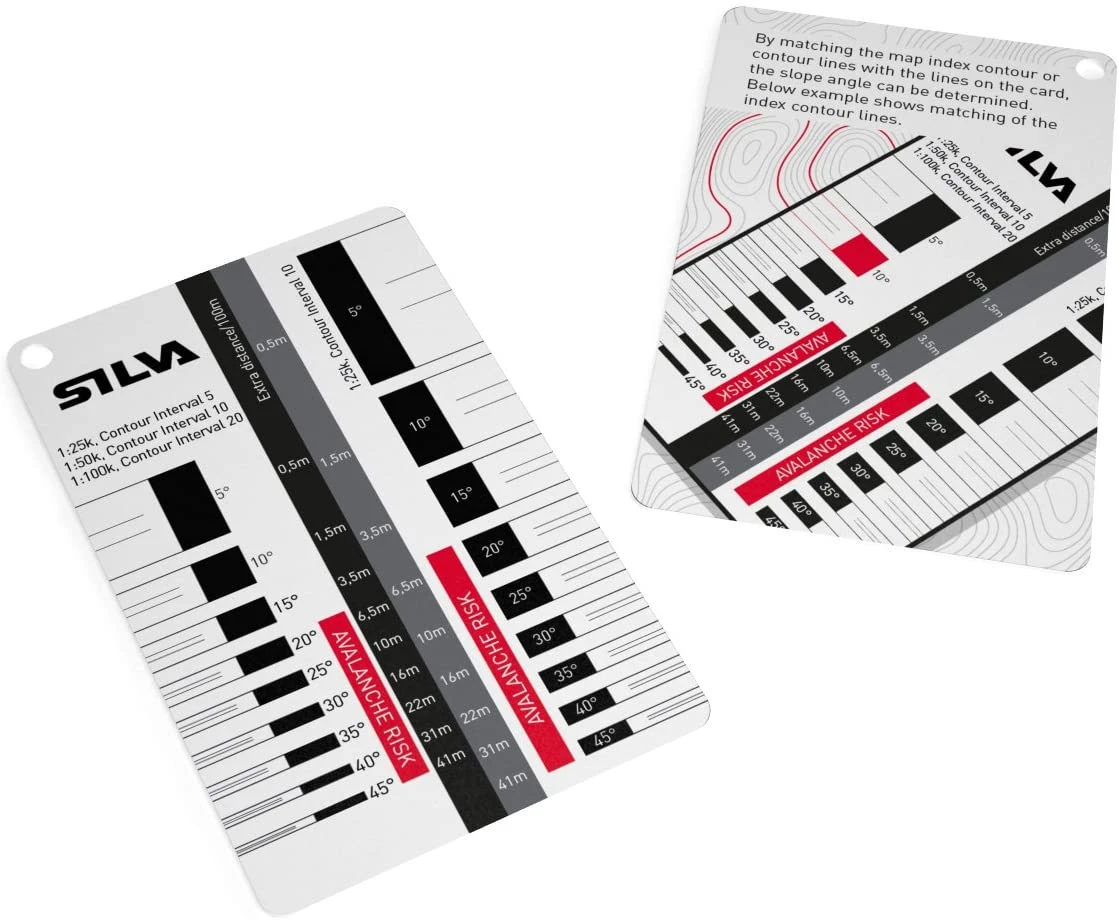

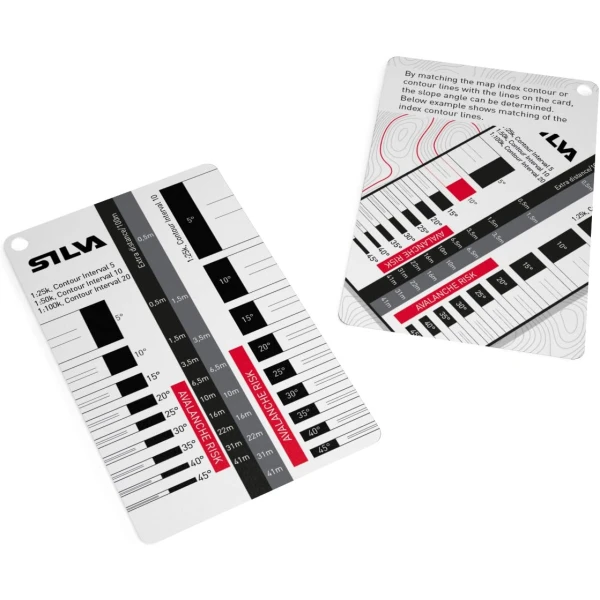

  • slope card and scale lanyard

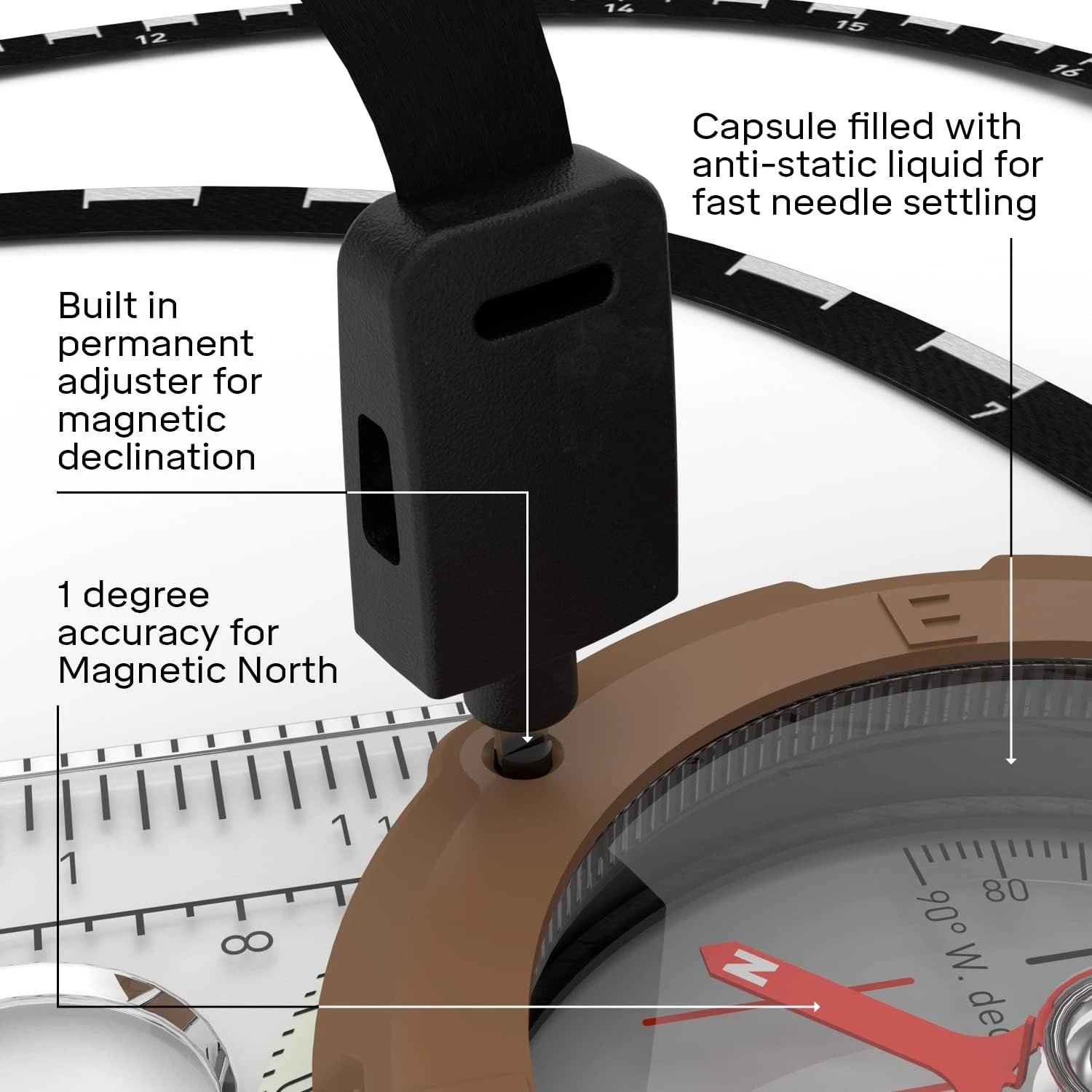

  • declination adjustment
  • clinometer
  • luminous markings – illuminates for up to 4 hours after activation

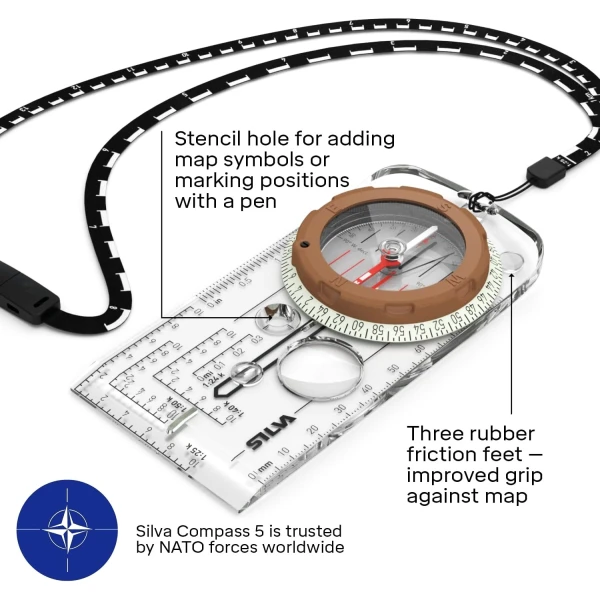

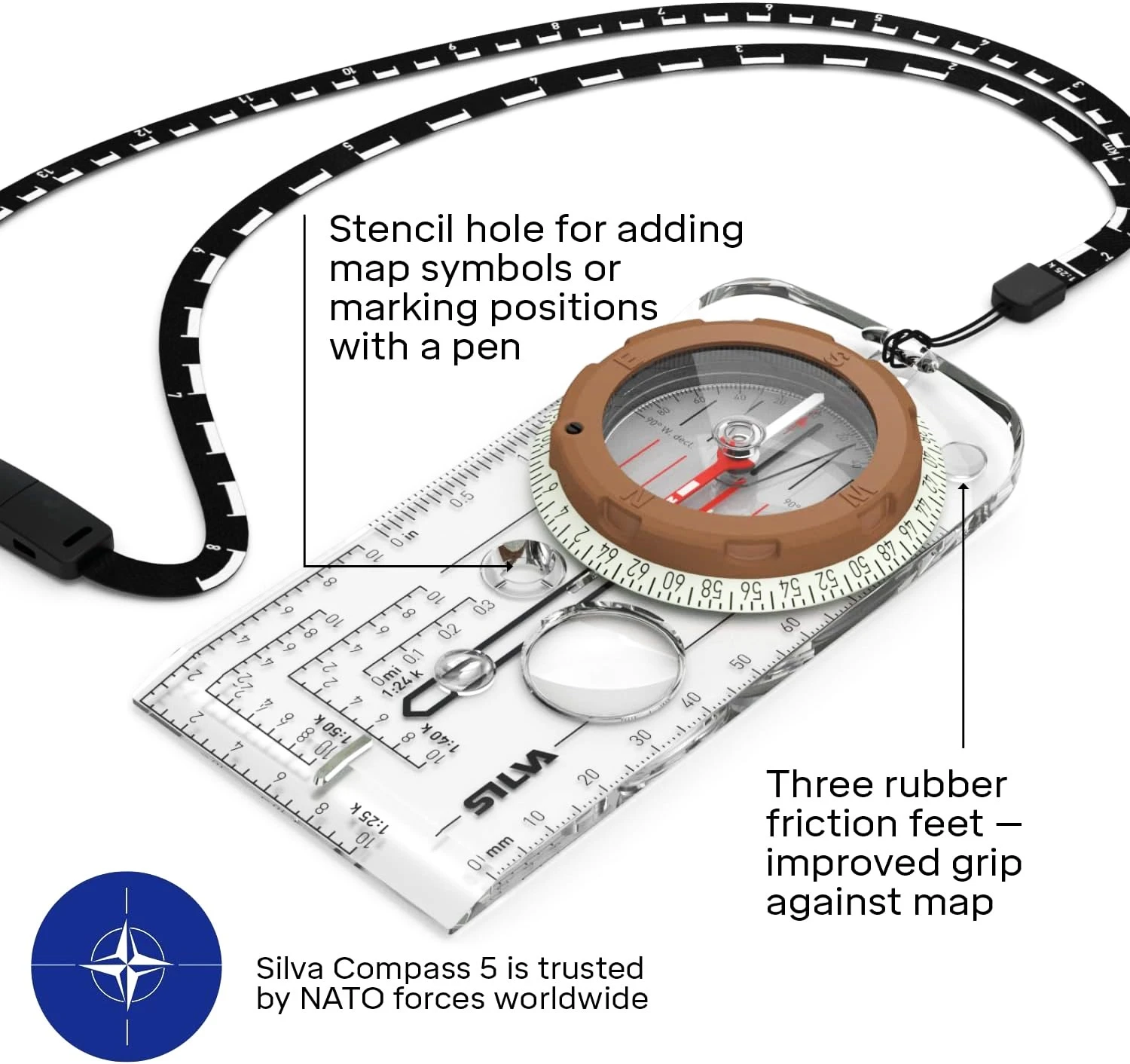

  • rubber feet for precision map work
  • 5-year warranty

Specifications:

  • Article number: 37585
  • Accuracy: ± 1° (17.8 mils)
  • Altitude use: 5000m @-15 °C
  • Attachment: Detachable safety-release scale lanyard, Slope card
  • Clinometer: Yes
  • Declination adjustment: Yes
  • Graduation: 6400° / 360°
  • Illumination: 4 hours after activation in light, Luminous markings
  • Impact resistance: 30g in XYZ directions and free fall from 1.5 m height into gravel
  • Magnifying lens: Yes
  • Material: Acrylic, PC/ABS, TPU
  • Resolution degrees / mils: 2 / 50
  • Sapphire jewel bearing for friction-free movement of the compass needle: Yes
  • Scales: Baseplate: 1:25k, 1:40k, 1:50k, mm, inch, Lanyard; 1:25, / 1:50
  • Settling time from 90° angle to complete rest: 5 sec
  • Settling time from 90° angle within ± 3°: 2.7 sec
  • Sighting System: No
  • Silicon friction feet: Yes
  • Size: 126 x 60 x 13 mm
  • Type of compass: SILVA 1-2-3, baseplate
  • Temperature operating range: -30 to +60 C

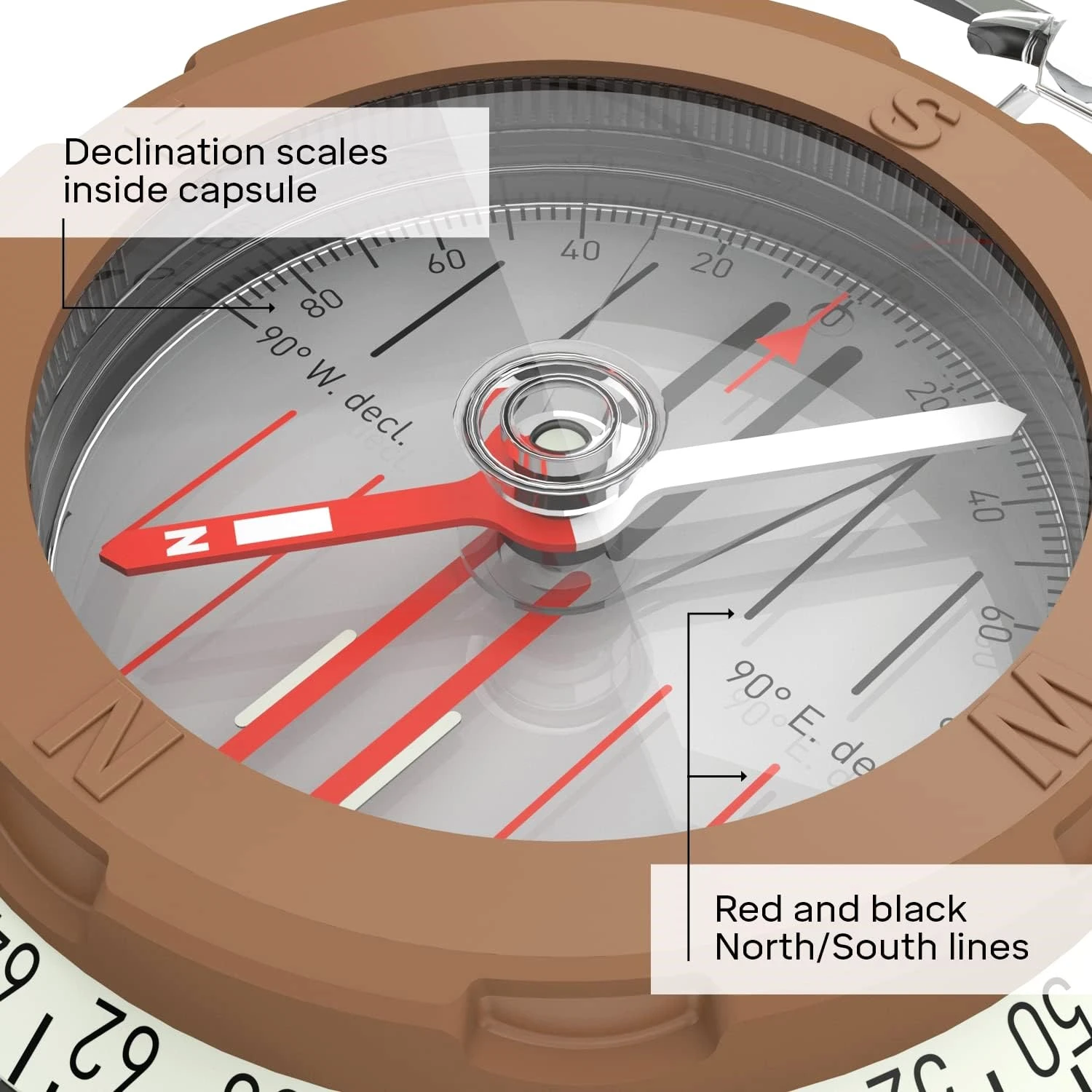

  • Patented red/black N/S lines in capsule: Yes
  • Turnable capsule: Yes
  • UTM position plotting scales (Romer scales): 1:25k, 1:40k, 1:50k
  • Weight: 50 grams
  • Other: GPS scales
  • Variant:  MS – magnetic south
All compasses we stock are MS (magnetic south) models balanced for use in Australia and New Zealand.
